TLSR8359 主控

UART

#define RXD 		GPIO_PA7
#define TXD		GPIO_PB1

LED

#define LED_BLUE	        GPIO_PC6
#define LED_RED		GPIO_PC5
#define LED_GREEN	GPIO_PB6

EPD

FPC-A003 HB SSD1680

SDA PD2
SCL PD3
CS PD4
DC PD7
RST PA0
BUSY PA1

NFC

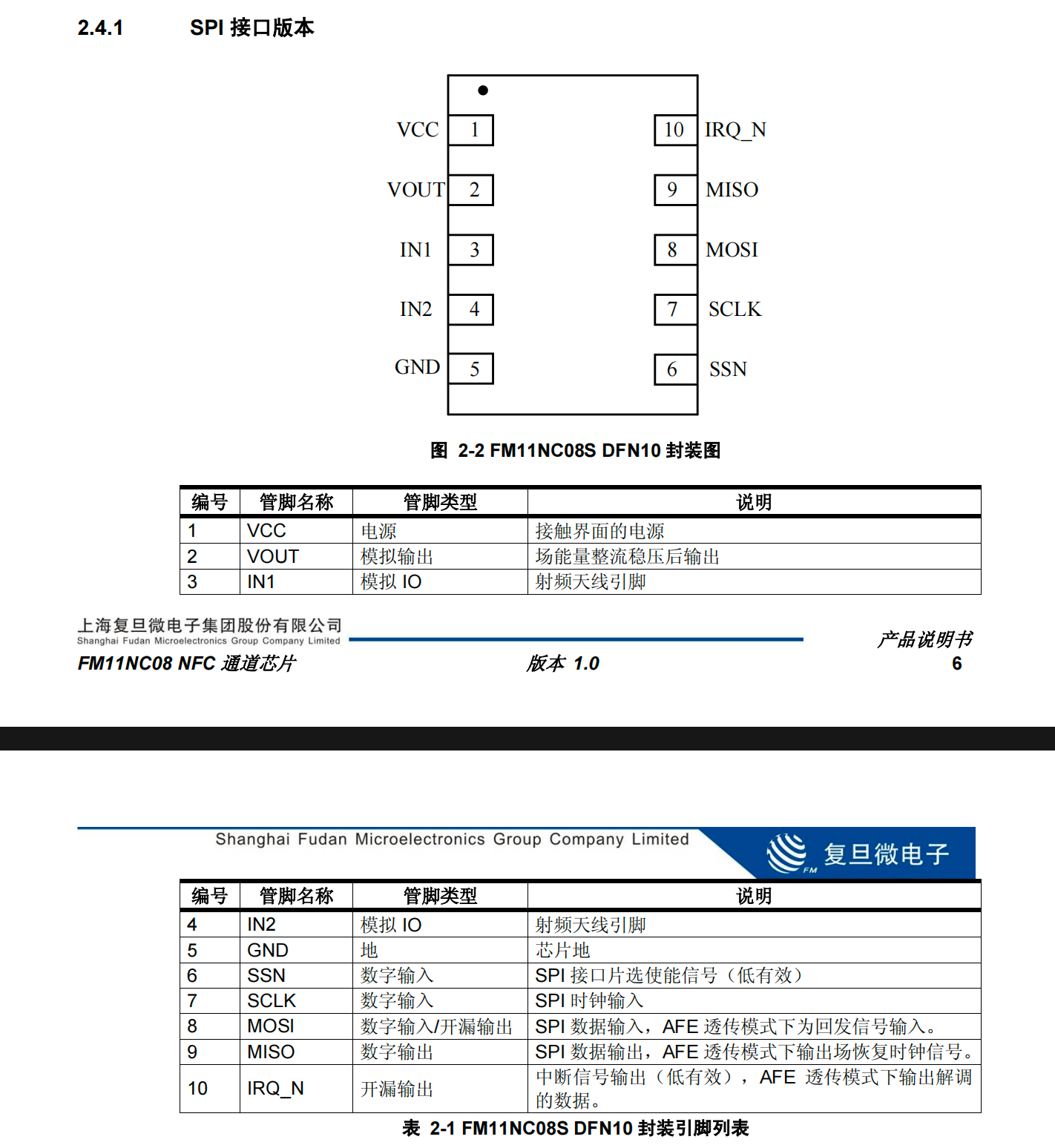

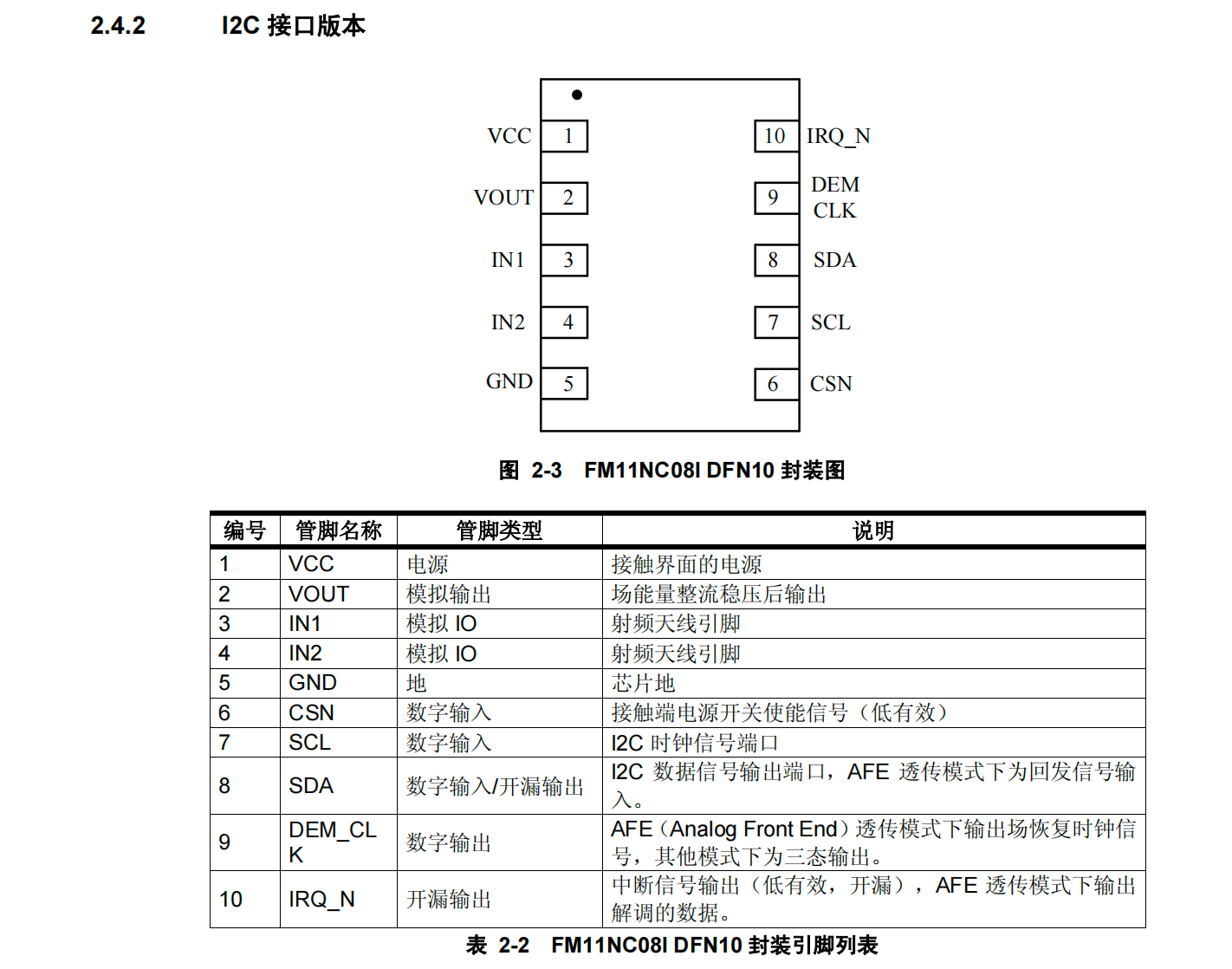

FM11NC08S | NFC Wiki

#define NFC_SDA		GPIO_PC0
#define NFC_SCL		GPIO_PC1
#define NFC_CS		GPIO_PB7
#define NFC_IRQ		GPIO_PC4

参考资料

• https://doc.telink-semi.cn/index/index/detail/id/192/type/1.html
